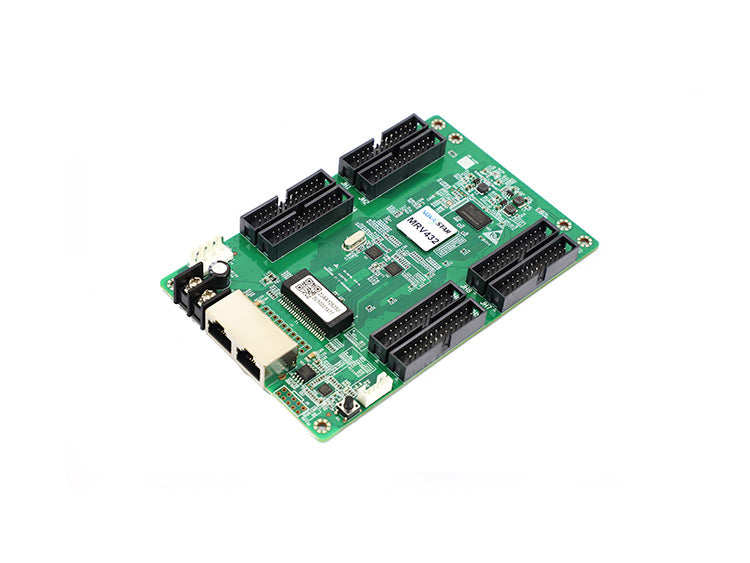

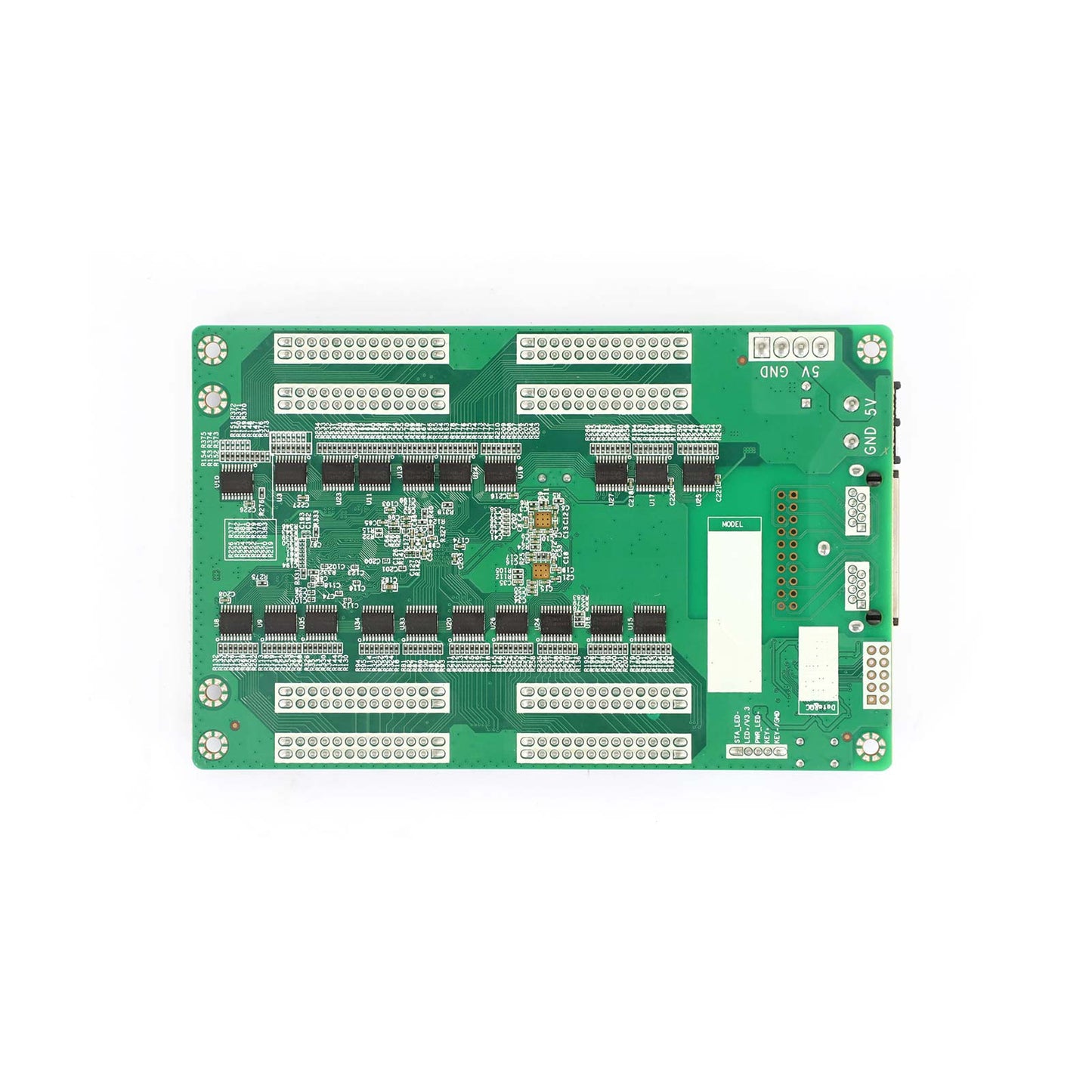

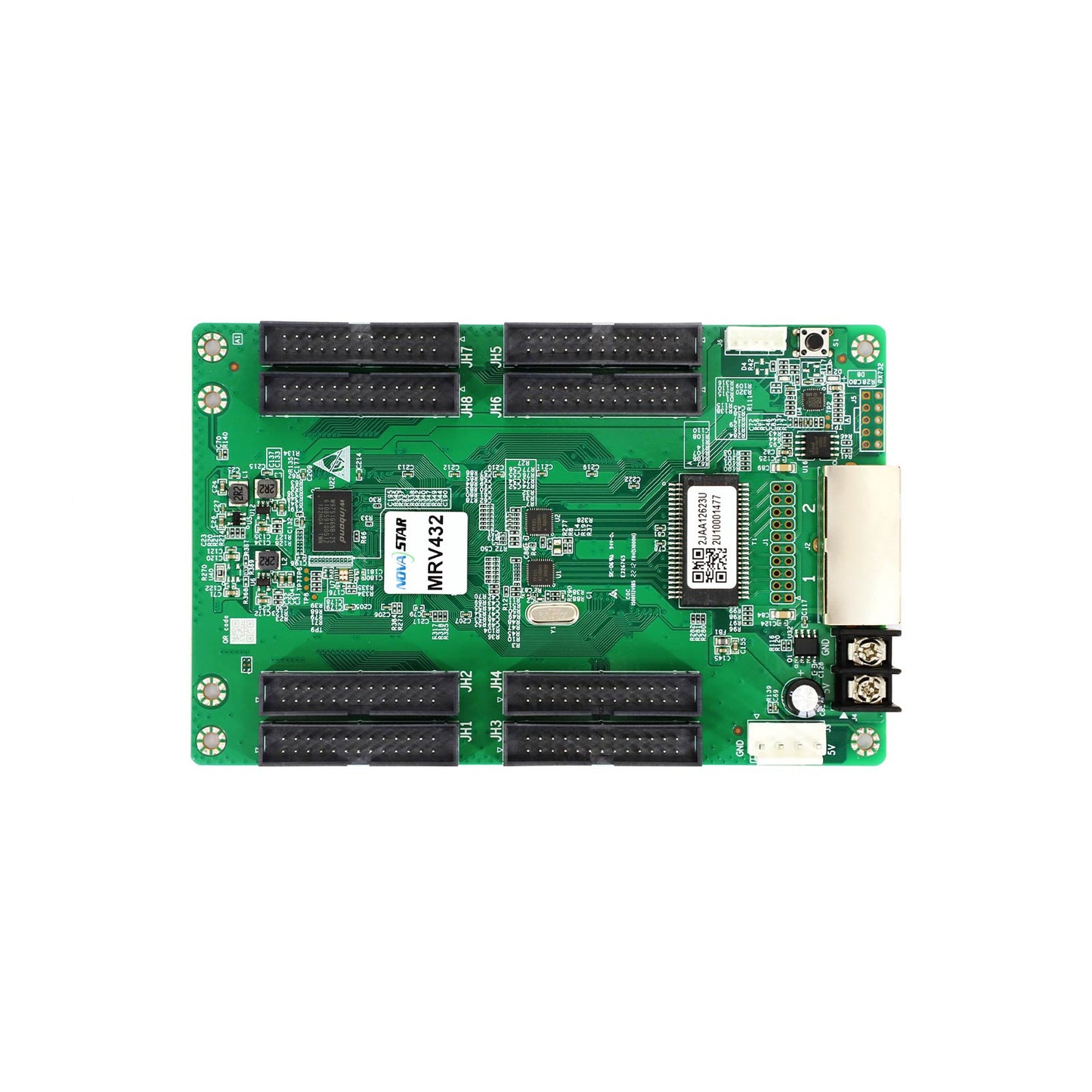

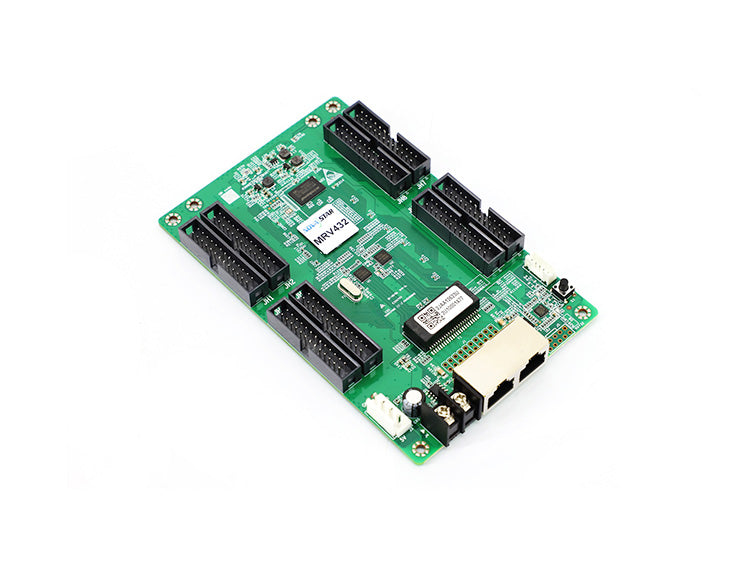

Novastar MRV432 Receiving Card
The NovaStar MRV432 is a versatile receiving card capable of handling up to 512×512 pixels per unit. It enhances display quality and user experience with features like pixel-level brightness and chroma calibration, quick line adjustment, 3D capabilities, individual RGB Gamma adjustment, and 90° image rotation. The card utilizes 8 HUB320 connectors for communication, supporting up to 32 groups of parallel RGB data or 64 groups of serial data. With an EMC compliant hardware design, the MRV432 offers improved electromagnetic compatibility, making it ideal for a wide range of on-site installation scenarios.
Features
- Offers pixel-level brightness and chroma calibration, working with a high-precision system to ensure uniform brightness and color consistency for enhanced display quality.
- Features quick adjustment for dark or bright lines, improving the visual experience by easily rectifying module or cabinet splice issues.
- Supports a 3D function, enabling 3D output when used with a compatible sending card.
- Provides individual Gamma adjustment for RGB, allowing precise control of image uniformity and white balance, especially at low grayscale levels, for more realistic imagery.
- Allows image rotation in 90° increments (0°/90°/180°/270°), offering flexible display orientation options.
- Includes advanced maintainability features such as mapping function for easy identification of receiving card locations, temperature and voltage monitoring, cabinet LCD displays, bite error detection for network issues, enhancing overall reliability and ease of use.
