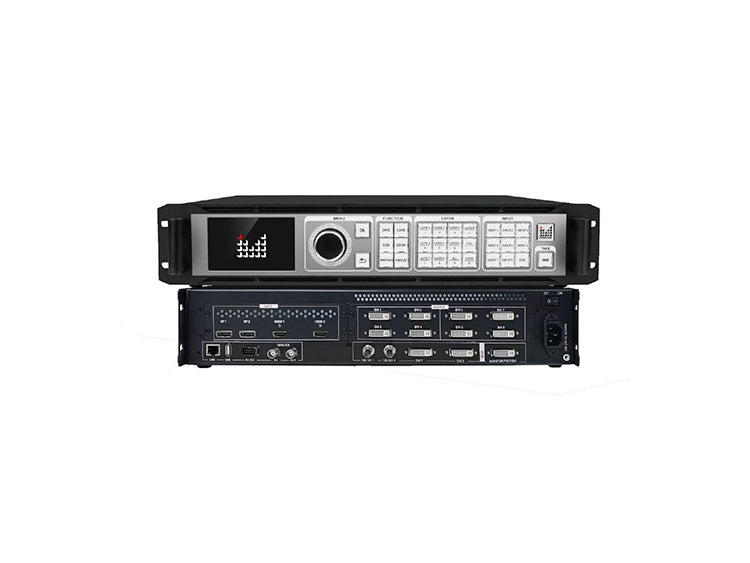

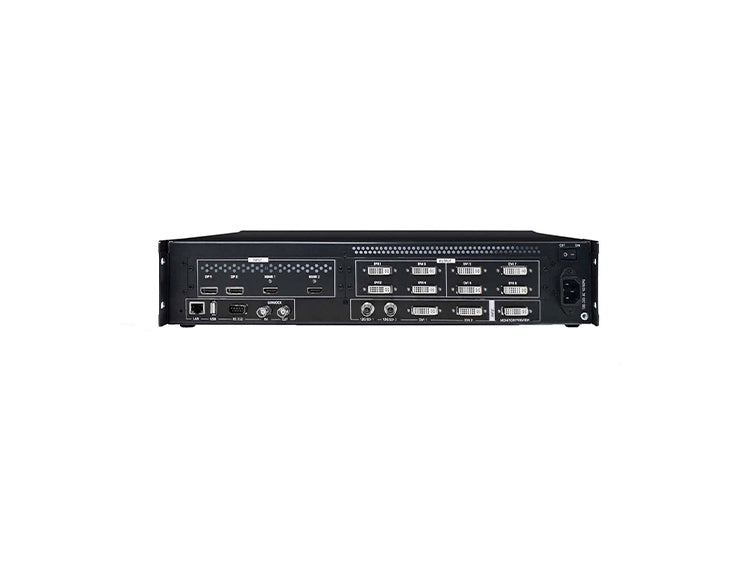

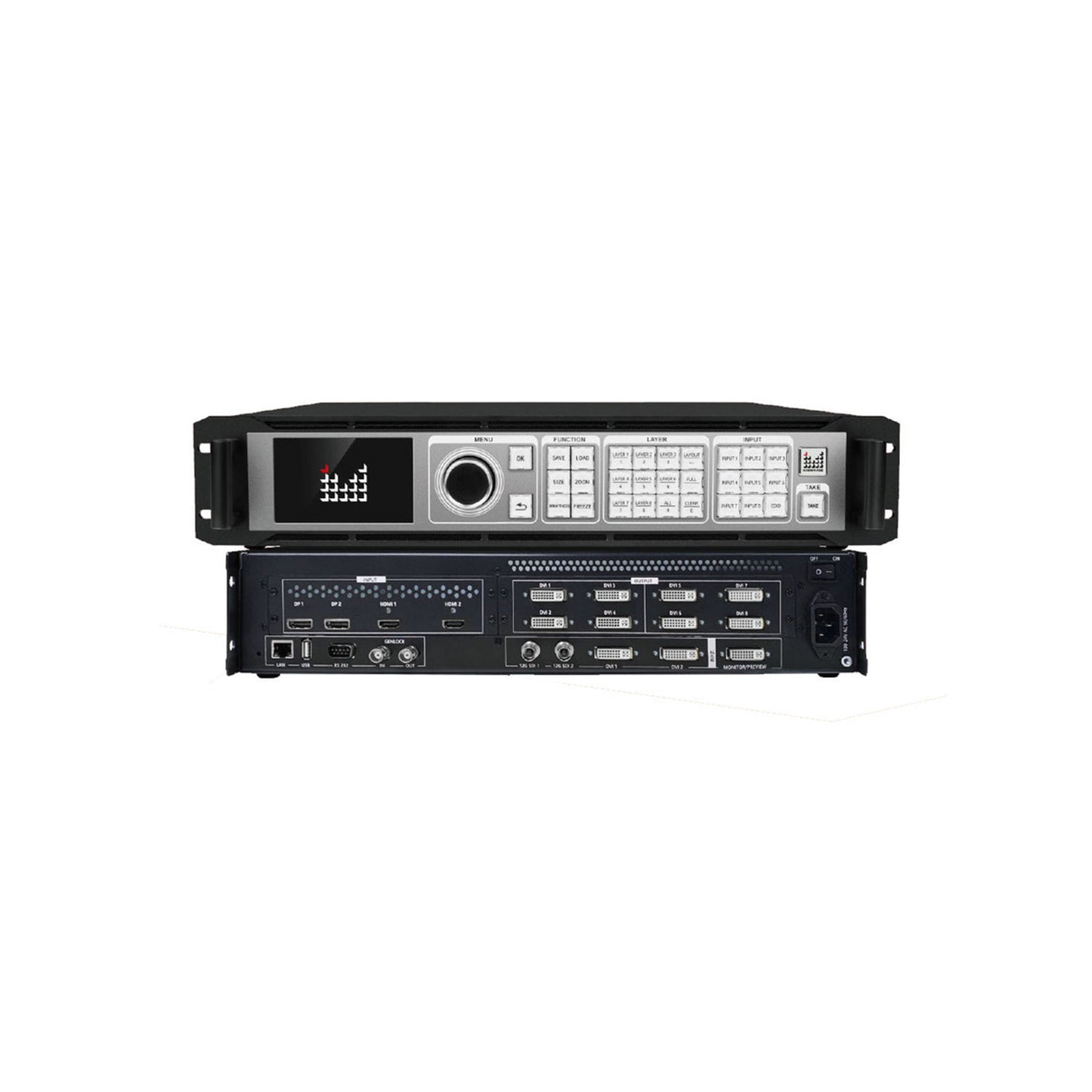

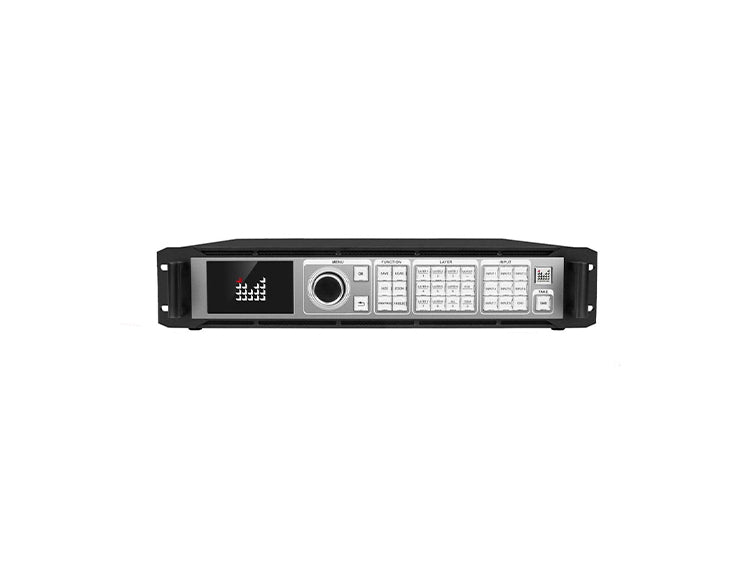

Mag LED-EC40 Video processor
Unleash unparalleled visual clarity with the MIG-EC40 LED Video Processor. Featuring industry-leading 24-bit, 4K/60Hz 4:4:4 image processing, this device brings vivid, crystal-clear images to any display system. Effortlessly switch between multiple 4K and 2K inputs with its built-in matrix. Advanced motion image adaptive technology eradicates motion blur and jaggedness, ensuring smooth, detailed output. Equipped with a touchscreen for swift navigation and precise control, the MIG-EC40 is ideal for rental events due to its compact size, robust functionality, and user-friendly interface.
Features
1. Switcher Mode supports four program outputs with four layers, allowing size and position adjustments for each layer.
2. Mosaic Mode enables eight outputs, each supporting 4K1K@60Hz, with a maximum mosaic capability of 16K2K@60Hz and 4K2K/60H 4:4:4 input.
3. Compliant with HDCP 1.4 and 2.2, ensuring secure content delivery.
4. Features one multi-window preview for real-time monitoring of input signals and outputs, with customizable layouts.
5. Eight mixed matrix inputs allow for the combination of multiple 2K/4K inputs.
6. Includes background picture capture capability to enhance presentation quality.
7. Integrated input EDID management and advanced image cropping and layer zoom functions.
8. Supports external synchronization and multi-cascade mosaic for extensive screen setups, controlled via a touch screen interface.
