E120 LED Receiving Card

E120 LED Receiving Card

Precio habitual $14.50
Precio habitual Precio de oferta $14.50
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Tech specs



Care Instructions

Download Manual Ver todos los detalles

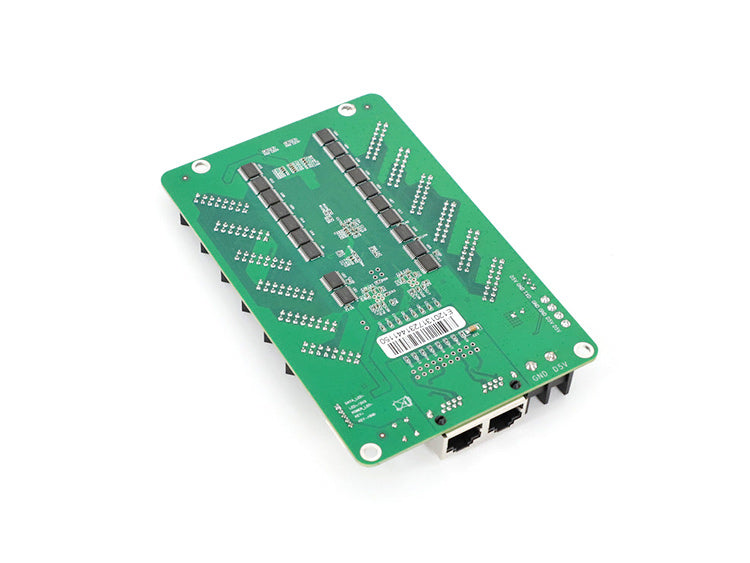

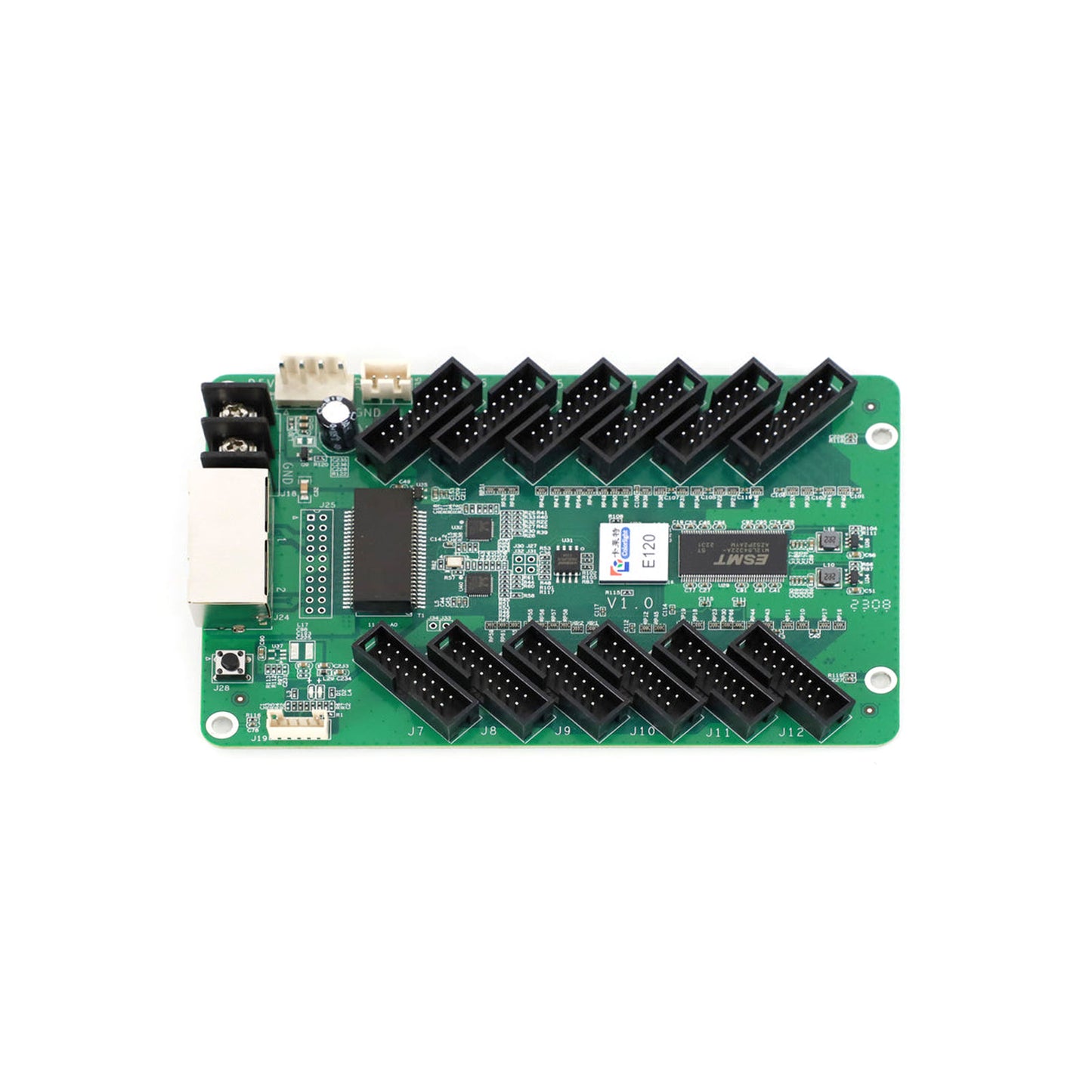

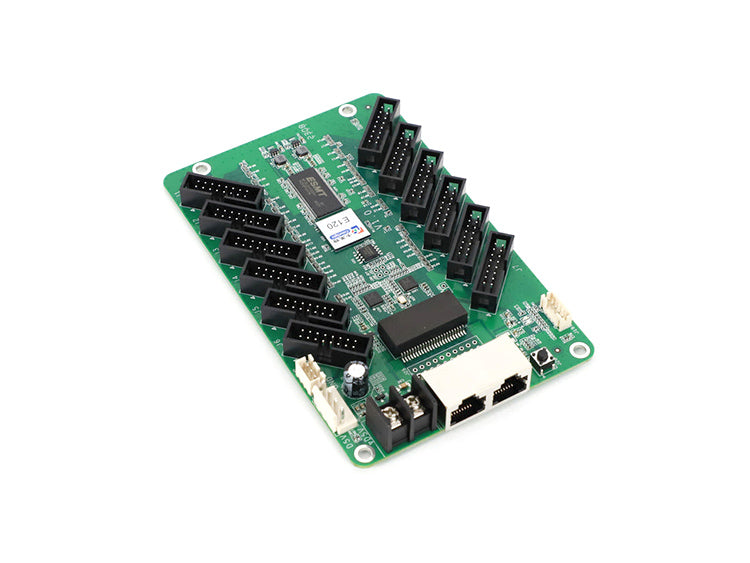

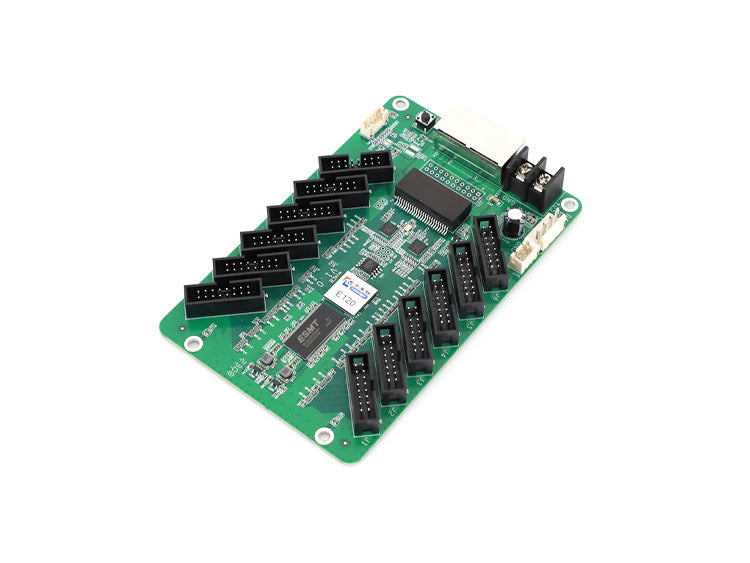

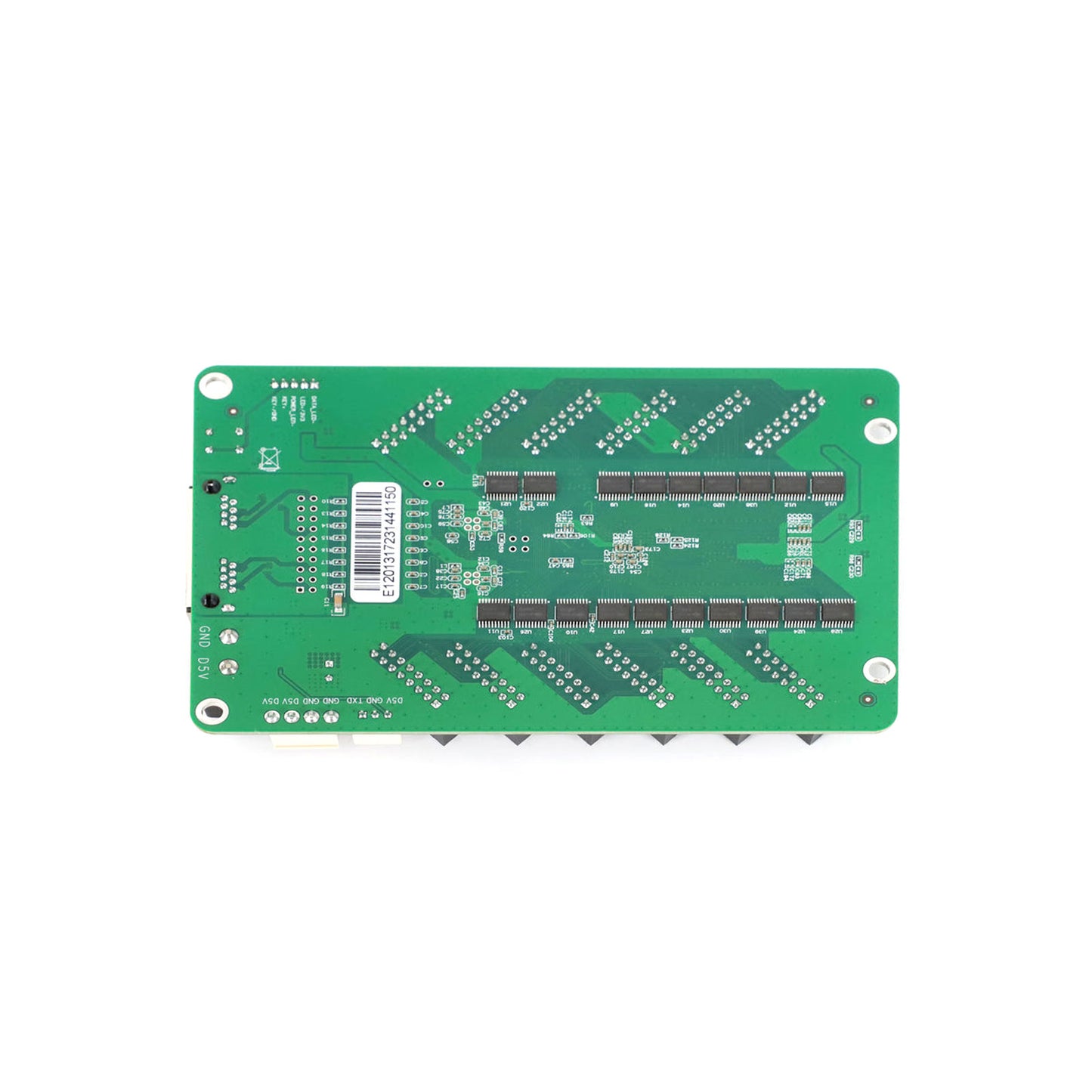

Colorlight E120 LED Receiving Card

The Colorlight E120 receiving card is a revolutionary, budget-friendly solution that delivers impressive technology in a compact package. With a resolution capacity of up to 192×1024 pixels and support for 24 groups of parallel or 32 groups of serial data, it ensures reliable performance through its integration with HUB75 interfaces. This card offers a perfect blend of affordability and quality, making it an ideal choice for customers seeking efficient and effective LED display solutions.


1. The control system is versatile, compatible with Normal, PWM, and Shixin chips, supporting resolutions of 128x1024, 192x1024, and 162x1024 pixels respectively, with flexible Ethernet port exchange.

2. Display module compatibility extends to Normal, PWM, and Shixin chips up to 1/128 scale, adaptable to a range of routing configurations across 13312 pixels.

3. Supports 24 groups of parallel RGB full-color data and 32 groups of serial RGB data, expandable to 128 groups, with the freedom to interchange data groups.

4. Offers data folding capabilities for Normal chips (2-8 fold horizontally/2-4 fold vertically) and PWM and Shixin chips (2-8 fold either horizontally or vertically).

5. Includes a versatile pumping pol feature for any point, row, or column, enhancing display flexibility.

6. Equipped with a monitoring function to track total and error data packets, providing insights into network quality.
