DH7512-S LED Receiver Card

DH7512-S LED Receiver Card

Precio habitual $15.00
Precio habitual Precio de oferta $15.00
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Tech specs



Care Instructions

Ver todos los detalles

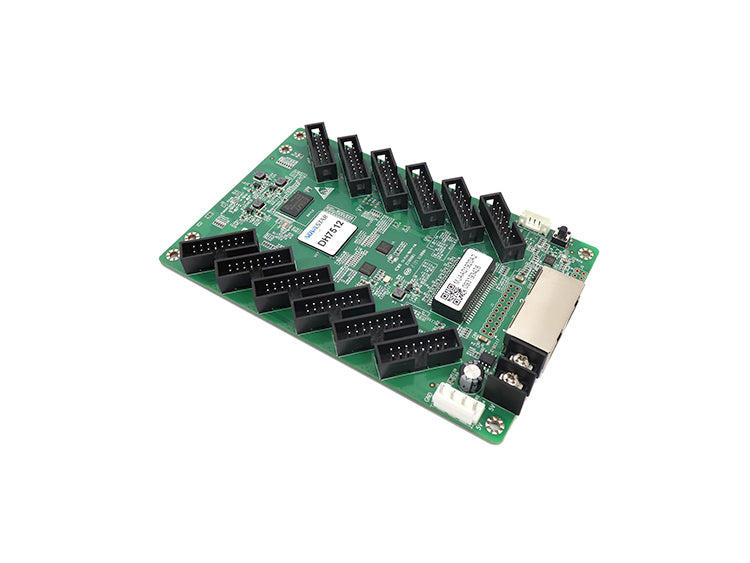

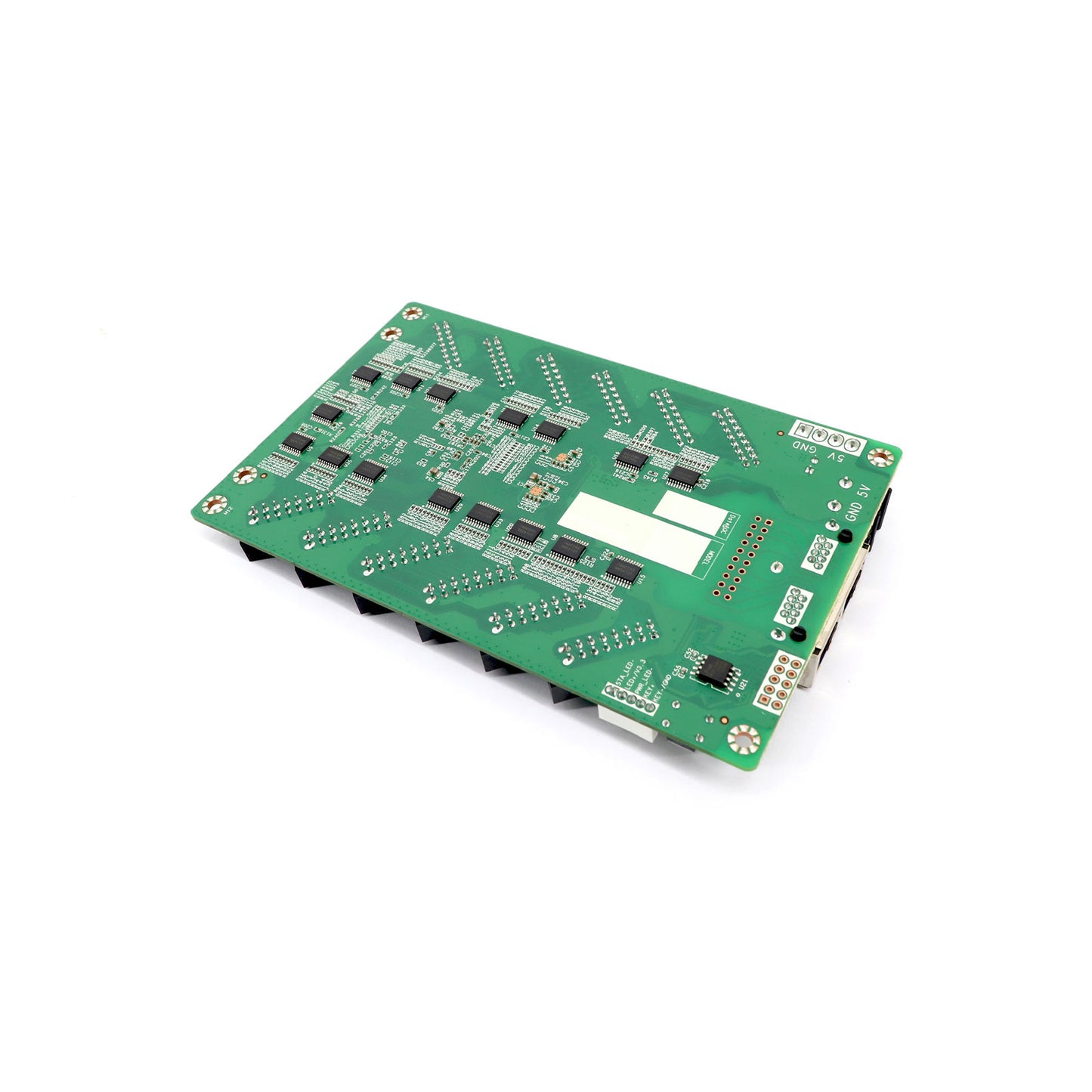

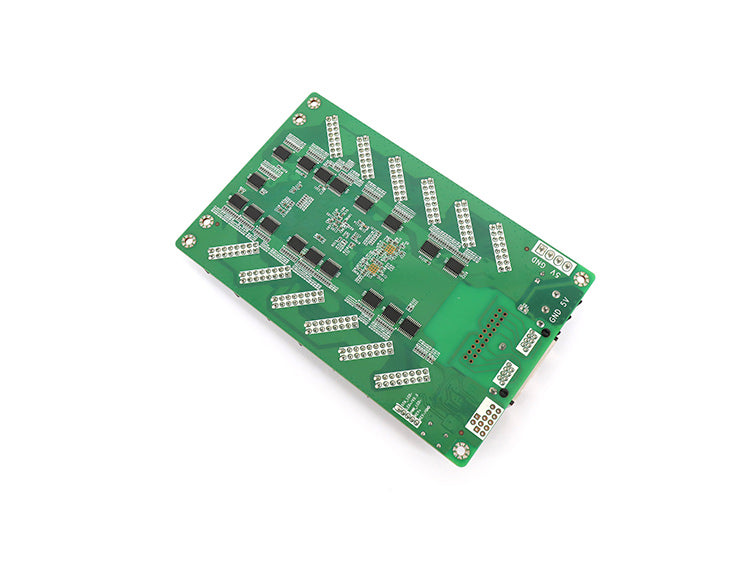

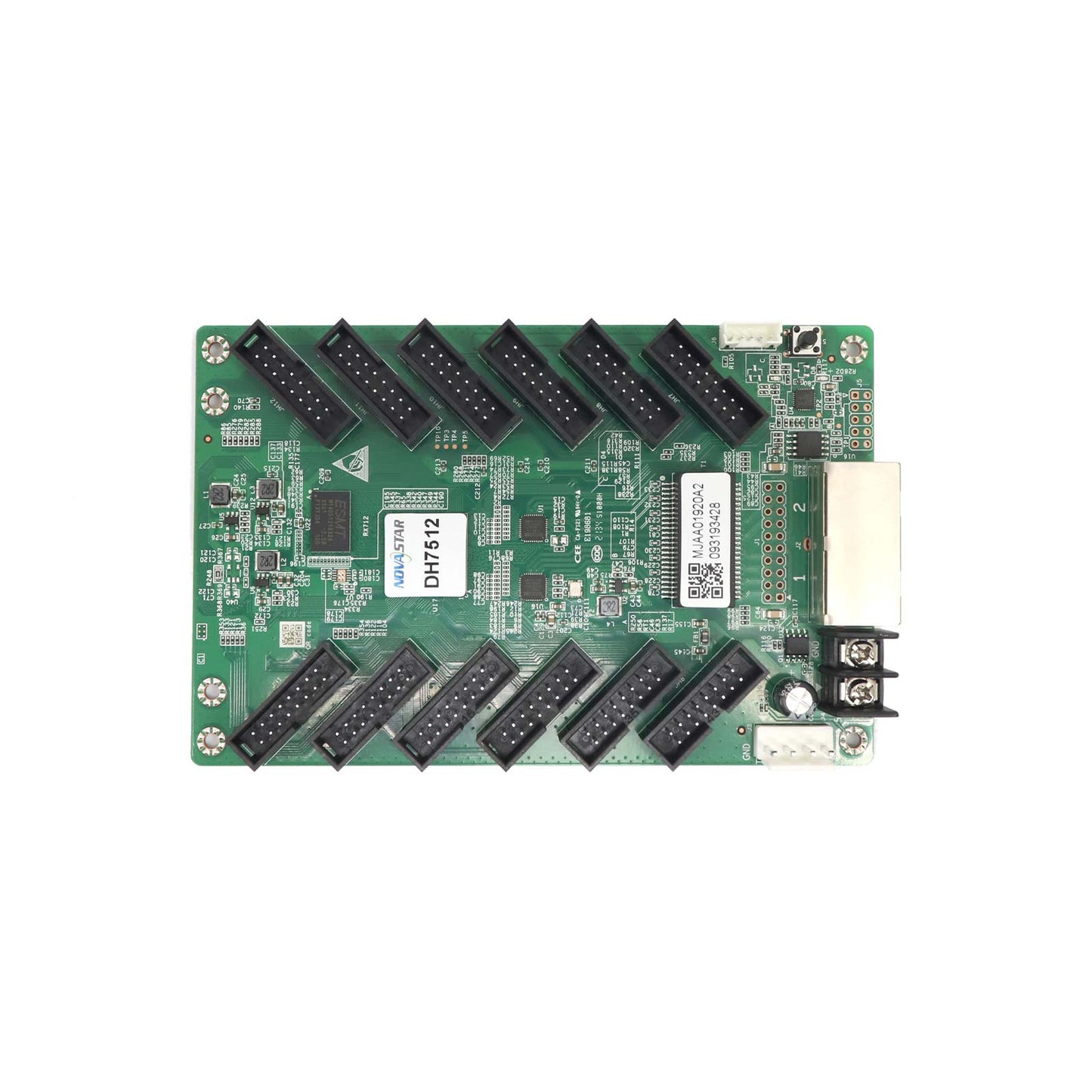

Novastar DH7512-S LED Receiver Card

The Novastar DH7512-S LED Receiving Card, a high-performance offering from NovaLCT, is capable of handling up to 512×512 pixels per card (requires NovaLCT v.5.3.1 or above). It enhances display effects and user experience with features like color management, 18Bit+ depth, point-by-point brightness and chroma correction, independent RGB Gamma adjustment, and 3D capabilities. Equipped with 12 standard HUB75E interfaces, it supports up to 24 groups of RGB parallel data. The DH7512-S is designed with user deployment, operation, and maintenance in mind, ensuring ease of setup, stable operation, and efficient maintenance.


  1. The Novastar DH7512-S LED Receiver Card features advanced color management and 18Bit+ depth for enhanced visual quality.
  2. Offers point-by-point brightness and chromaticity correction, along with quick adjustment of bright and dark lines.
  3. Includes a 3D function and independent RGB Gamma adjustment, allowing for intricate display customization.
  4. Enables screen rotation in 90° increments and includes a mapping function for versatile display orientation.
  5. Comes with pre-stored screen settings, and has temperature and voltage monitoring capabilities for operational reliability.
  6. Supports cabinet LCD display, error detection, firmware and configuration parameter readback, loop and dual backup for both configuration parameters and programs, ensuring high stability and redundancy.
