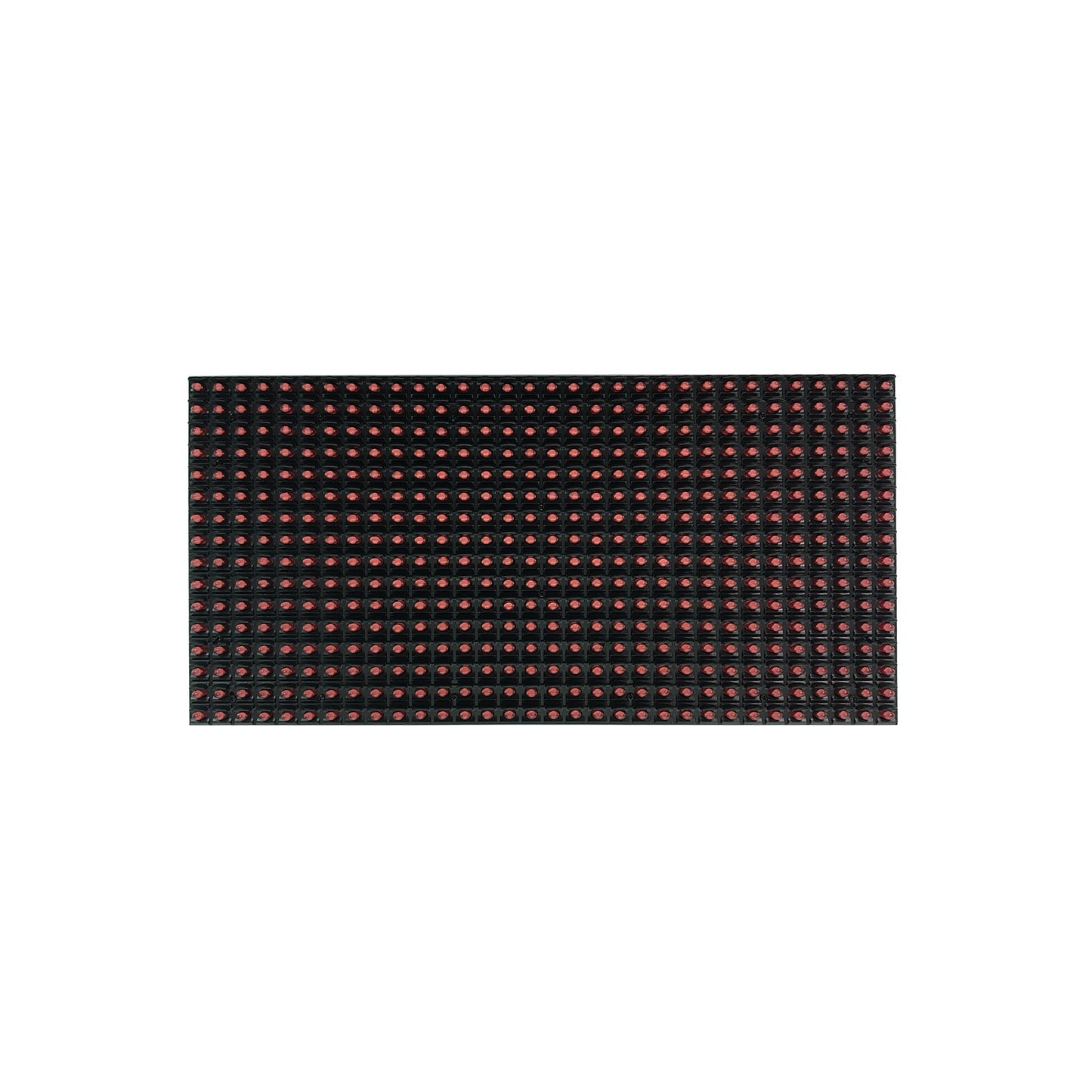

P10 Outdoor DIP Module
Dot Pitch: 10mm
Pixel density: 10000/m2
Pixel Configuration: 1R EPISTAR 8MIL
Module Dimension: 320mm(L)*160mm (H)
Module Resolution: 32pixel(L)* 16pixel(H)
P10 Red Module Specification
Module Resolution: 32pixel(L)* 16pixel(H)
Viewing Distance: 10~25M
Viewing angle-Horizontal: 90°-120° degree
Viewing angle-Vertical: 30°-60° degree
Operating temperature: -20°C—+50°C (for working)
Max-power consumption: ≤300 W/m2
Max power per module: 15W
Drive type :1/4 constant current
