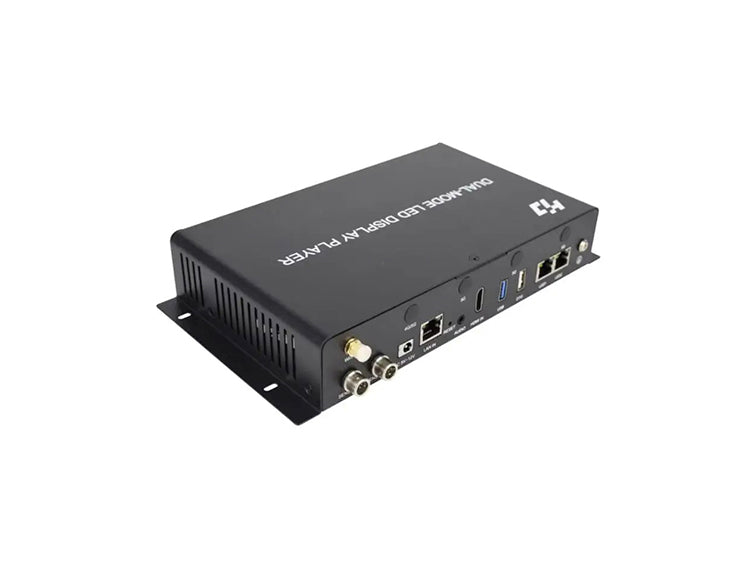

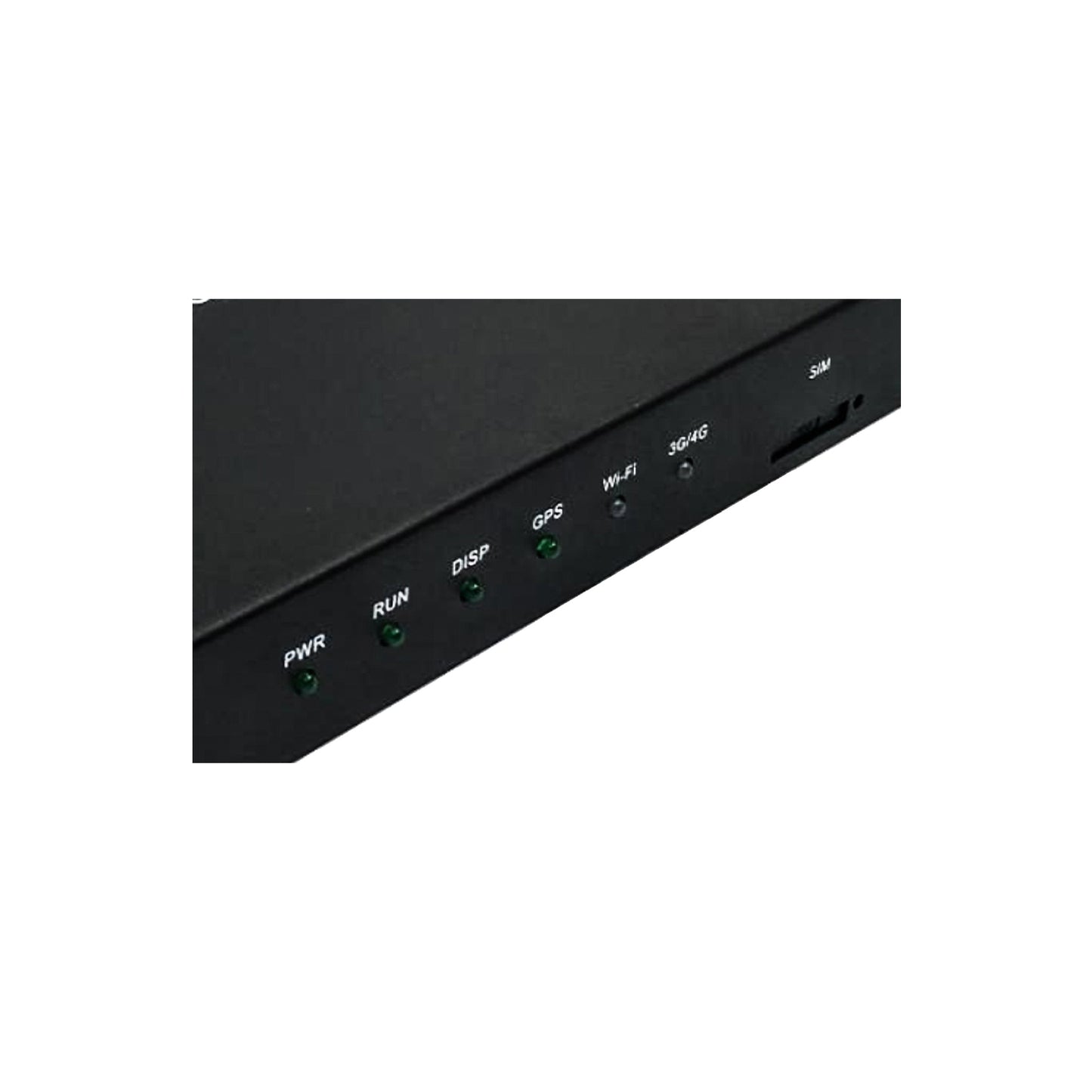

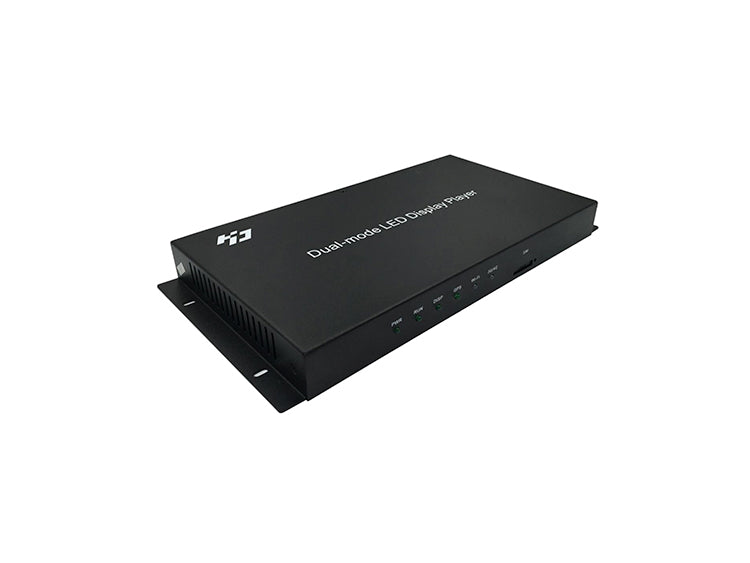

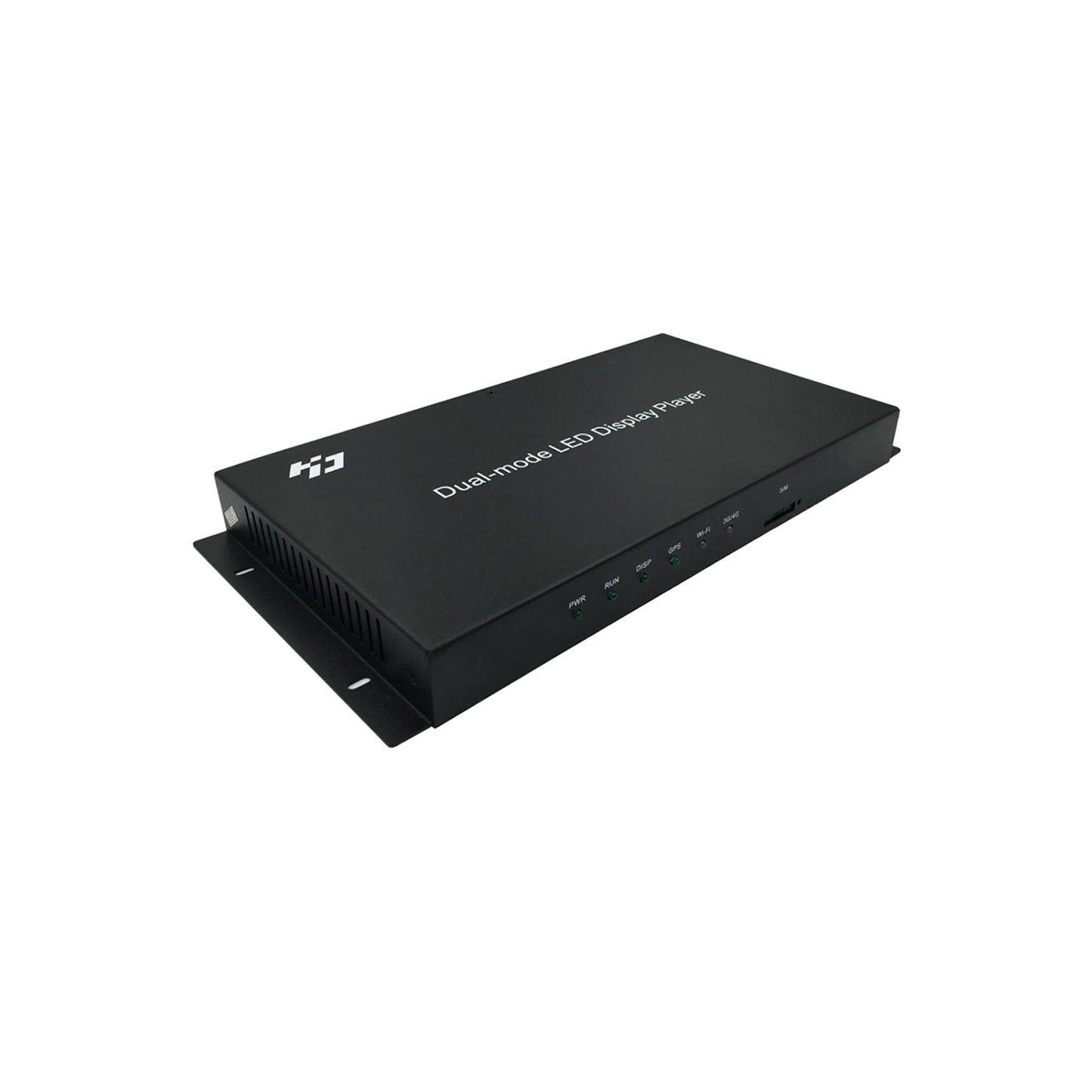

LED controller HD-A5L
The HD-A5L is a comprehensive LED display multimedia player designed for a wide range of content types. It supports playback of videos, images, GIF animations, text, WPS documents, spreadsheets, clocks, timers, and various other programs. This versatile player is equipped with both asynchronous and synchronous playback capabilities. Additionally, it offers the flexibility of multi-terminal control, allowing for efficient distribution and management of programs across different platforms and devices. This makes the HD-A5L an ideal solution for diverse multimedia display requirements.
Features
Input:

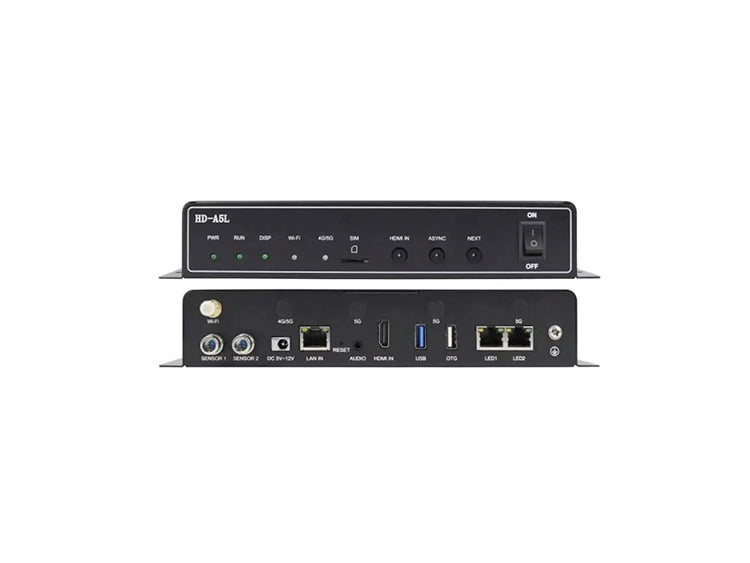

This device includes a 1 Gigabit communication network port, designed for efficient parameter debugging and enhanced program transmission speeds. It features a HDMI IN input interface that supports automatic zooming for synchronous images, along with both synchronous and asynchronous picture-in-picture functions. Additionally, the system offers a channel for USB2.0 with customizable OTG/USB mode and a channel for USB3.0 communication, facilitating program uploads and capacity expansion. It also supports two sensor input channels for connecting various environmental monitoring sensors.
Output:
Equipped with two standard Gigabit output network ports, the device allows for direct cascading with HD-R series receiving cards for display control. Its control capacity reaches up to 1.3 million pixels, with a maximum horizontal support of 16384 pixels (discounted) and a vertical support of 4096 pixels. The system includes a single channel TRS 3.5mm standard two-channel audio output.
Functions:
Operating on standard 2.4GHz Wi-Fi, the device supports mobile phone APP wireless control, including STA mode for connecting to nearby Wi-Fi networks. It is capable of multi-channel video window playback, supporting configurations like up to 2-channel 4K, 6-channel 1080P, 10-channel 720P, or 20-channel 360P. The system facilitates both synchronous and asynchronous playback switching. It also offers optional 4G/5G connectivity for accessing the XiaoHui Cloud platform, enabling internet-based remote cluster management. Moreover, the device supports wireless projection from mobile phones, tablets, and computers.
